Generate a high-contrast, well-separated highlight palette (global search)

Source: R/highlight_colors.R
highlight_colors.Rd

Changes from your previous version:

  • Global hue sampling by default (hue_targets = "auto")

  • Optional hue repulsion near background/base (repel_from, repel_band)

  • Smart auto-bias toward opponent hues when bg & base are far apart (auto_bias)

  • NEW: contrast_method="auto" picks APCA for dark-on-light and WCAG for light-on-dark

Usage

highlight_colors(
  n,
  background = "#F0F0F0",
  base_color = "#4a1919",
  contrast_bg = 4.5,
  contrast_base = 3,
  min_deltaE = 35,
  hue_targets = "auto",
  anchor_band = 180,
  hcl_L_range = c(25, 75),
  hcl_C_range = c(40, 90),
  min_hue_sep = 35,
  n_candidates = 1e+05,
  relax = TRUE,
  quiet = TRUE,
  repel_from = c("background", "base"),
  repel_band = 50,
  auto_bias = TRUE,
  bias_width = 120,
  bias_frac = 0.8,
  contrast_method = c("option", "auto")
)

Arguments

n

Integer, number of colors.

background

Hex/R color for the plot background.

base_color

Hex/R color used for non-highlight elements.

contrast_bg

Required contrast vs background (WCAG ratio or APCA Lc depending on backend). Default 4.5.

contrast_base

Required contrast vs base_color (set 0 to skip). Default 3.0.

min_deltaE

Minimum CIEDE2000 separation between selected colors. Default 35.

hue_targets

"auto", "anchored", "spread", or numeric vector of hue angles (0–360).

anchor_band

Degrees around base hue to sample when hue_targets="anchored". Default 180.

hcl_L_range

Allowed HCL lightness range. Default c(25, 75).

hcl_C_range

Allowed HCL chroma range. Default c(40, 90).

min_hue_sep

Minimum separation in degrees between chosen hues. Default 35.

n_candidates

Number of random candidates before selection. Default 100000.

relax

Progressively relax min_hue_sep then min_deltaE if infeasible. Default TRUE.

quiet

Suppress relaxation messages. Default TRUE.

repel_from

Character vector among c("background","base") to avoid those hue neighborhoods.

repel_band

Degrees excluded around the repelled hues (±band). Default 50.

auto_bias

Logical; if TRUE and bg/base are far apart, bias sampling toward opponent hues.

bias_width

Width (degrees) of opponent sampling window when auto_bias applies. Default 120.

bias_frac

Fraction of samples drawn from the biased window when auto_bias applies. Default 0.8.

contrast_method

"option" (use global option, default) or "auto" (pick WCAG/APCA per polarity).

Value

Character vector of hex colors (length <= n) with an info attribute.

Details

Creates n colors by: (1) sampling HCL colors (global or biased), (2) filtering by WCAG/APCA contrast vs background (and optionally vs base_color), (3) selecting a maximally-separated subset by ΔE2000 and minimum hue spacing.

Set contrast_base = 0 to ignore base contrast (keeps only background contrast). Use hue_targets = "anchored" to sample around base_color (legacy-like).

NOTE: Switch contrast backend via: options(ggtwotone.contrast_method = "WCAG") # ratio scale, e.g. 4.5 options(ggtwotone.contrast_method = "APCA") # Lc scale, e.g. 60 OR pass contrast_method="auto" to pick per polarity.

Examples

highlight_colors(
 n = 4,
 background = "#222222",
 base_color = "#eeeeee")
#> [1] "#3195AD" "#D65DAB" "#9E8900" "#009D61"
#> attr(,"info")
#> attr(,"info")$contrast_bg_eff
#> [1] 4.5
#>
#> attr(,"info")$contrast_base_eff
#> [1] 3
#>
#> attr(,"info")$min_deltaE_eff
#> [1] 29
#>
#> attr(,"info")$min_hue_sep_eff
#> [1] 10
#>
#> attr(,"info")$n_candidates_in_gamut
#> [1] 82719
#>
#> attr(,"info")$n_after_contrast
#> [1] 570
#>
#> attr(,"info")$n_selected
#> [1] 4
#>
#> attr(,"info")$hue_mode
#> [1] "global"
#>
#> attr(,"info")$repel_band
#> [1] 50
#>
#> attr(,"info")$auto_bias
#> [1] TRUE
#>
#> attr(,"info")$contrast_method
#> [1] "WCAG"
#>

# ---------------------------------------------------------------

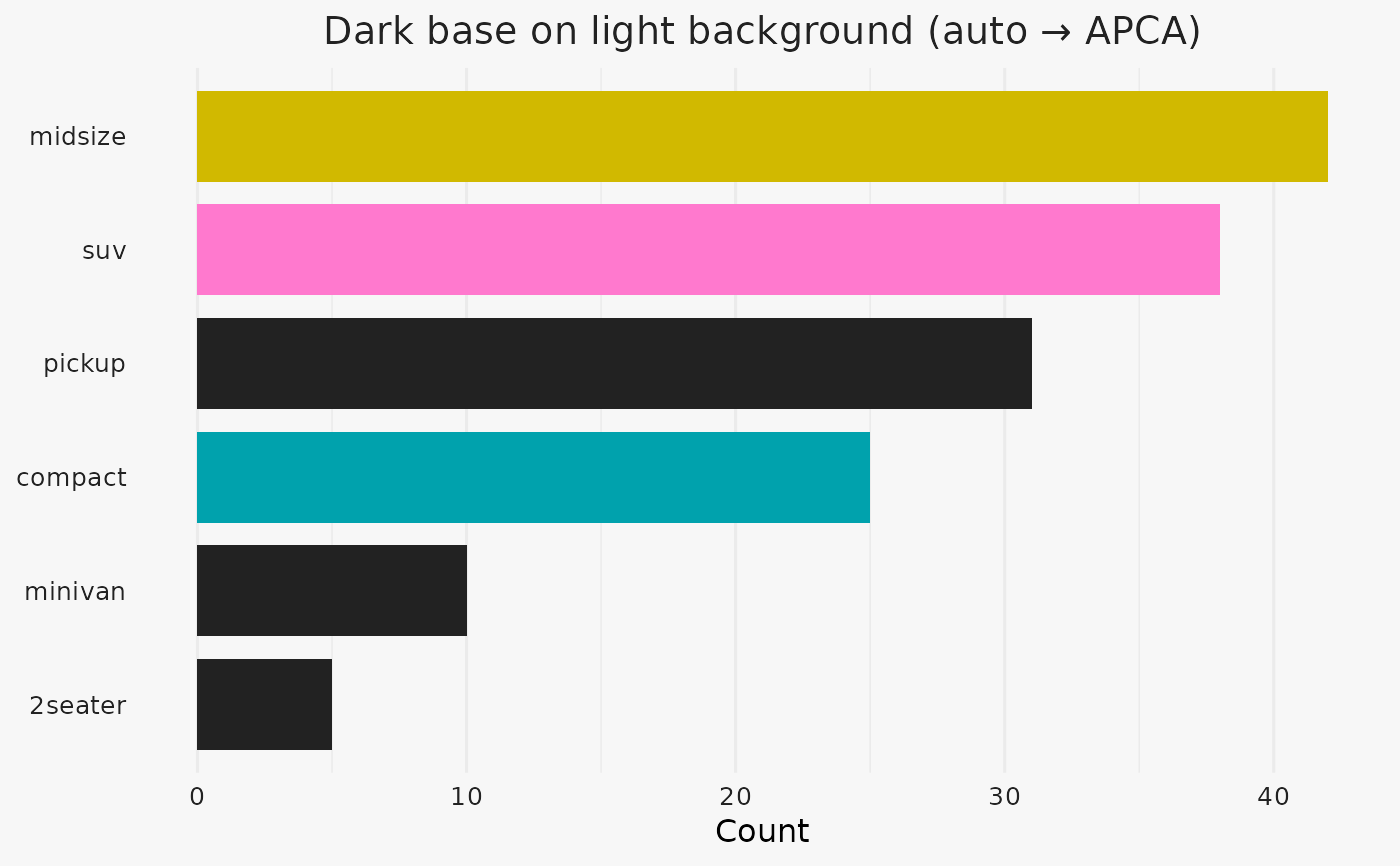

# dark base on light background
# ---------------------------------------------------------------
if (requireNamespace("ggplot2", quietly = TRUE)) {
  library(ggplot2)

  bg_hex   <- "#F7F7F7"   # light background
  base_hex <- "#222222"   # dark base

  set.seed(7)
  pal <- highlight_colors(
    n = 3,
    background     = bg_hex,
    base_color     = base_hex,
    contrast_method= "auto",   # automatically selects APCA
    contrast_bg    = 60,
    contrast_base  = 45,
    quiet = TRUE
  )

  print(pal)

  classes <- c("compact","suv","midsize","pickup","minivan","2seater")
  counts  <- c(25, 38, 42, 31, 10, 5)
  highlight_classes <- c("compact","suv","midsize")

  col_map <- setNames(rep(base_hex, length(classes)), classes)
  col_map[highlight_classes] <- pal

  df <- data.frame(class = classes, count = counts, fill = unname(col_map[classes]))

  ggplot(df, aes(x = reorder(class, count), y = count, fill = fill)) +
    geom_col(width = 0.8) +
    scale_fill_identity() +
    coord_flip() +
    labs(title = "Dark base on light background (auto → APCA)",
         x = NULL, y = "Count") +
    theme_minimal(base_size = 12) +
    theme(
      panel.grid.major.y = element_blank(),
      plot.background  = element_rect(fill = bg_hex, color = NA),
      panel.background = element_rect(fill = bg_hex, color = NA),
      plot.title = element_text(color = base_hex, hjust = 0.5),
      axis.text  = element_text(color = base_hex)
    )
}
#> [1] "#00A2AD" "#FF79CE" "#D1B900"
#> attr(,"info")
#> attr(,"info")$contrast_bg_eff
#> [1] 7
#>
#> attr(,"info")$contrast_base_eff
#> [1] 45
#>
#> attr(,"info")$min_deltaE_eff
#> [1] 35
#>
#> attr(,"info")$min_hue_sep_eff
#> [1] 35
#>
#> attr(,"info")$n_candidates_in_gamut
#> [1] 82507
#>
#> attr(,"info")$n_after_contrast
#> [1] 19609
#>
#> attr(,"info")$n_selected
#> [1] 3
#>
#> attr(,"info")$hue_mode
#> [1] "global"
#>
#> attr(,"info")$repel_band
#> [1] 50
#>
#> attr(,"info")$auto_bias
#> [1] TRUE
#>
#> attr(,"info")$contrast_method
#> [1] "APCA"
#>


# ---------------------------------------------------------------

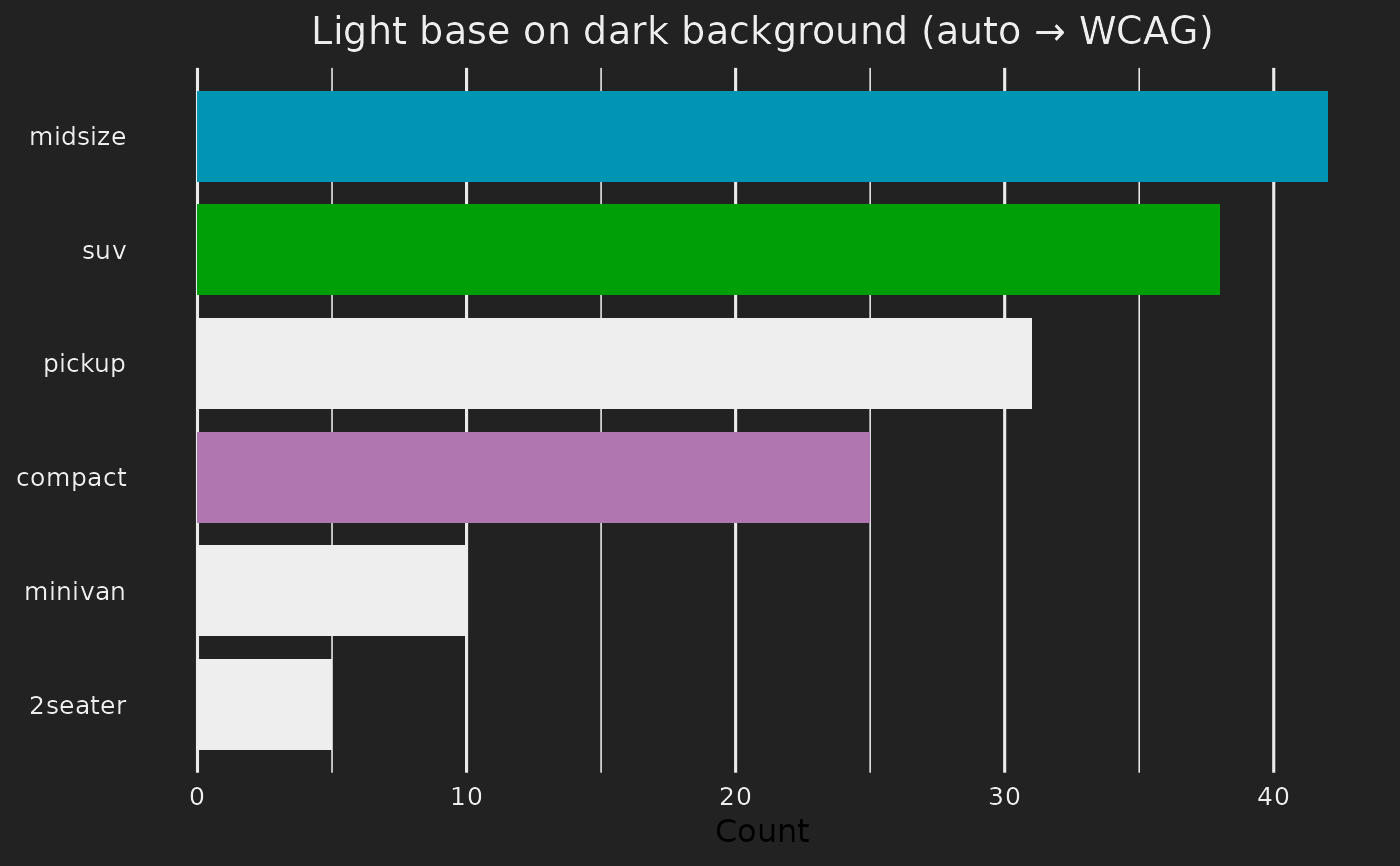

# light base on dark background
# ---------------------------------------------------------------
if (requireNamespace("ggplot2", quietly = TRUE)) {
  library(ggplot2)

  bg_hex   <- "#222222"   # dark background
  base_hex <- "#EEEEEE"   # light base

  set.seed(7)
  pal <- highlight_colors(
    n = 3,
    background     = bg_hex,
    base_color     = base_hex,
    contrast_method= "auto",   # automatically selects WCAG
    contrast_bg    = 4.5,
    contrast_base  = 3.0,
    quiet = TRUE
  )

  print(pal)

  classes <- c("compact","suv","midsize","pickup","minivan","2seater")
  counts  <- c(25, 38, 42, 31, 10, 5)
  highlight_classes <- c("compact","suv","midsize")

  col_map <- setNames(rep(base_hex, length(classes)), classes)
  col_map[highlight_classes] <- pal

  df <- data.frame(class = classes, count = counts, fill = unname(col_map[classes]))

  ggplot(df, aes(x = reorder(class, count), y = count, fill = fill)) +
    geom_col(width = 0.8) +
    scale_fill_identity() +
    coord_flip() +
    labs(title = "Light base on dark background (auto → WCAG)",
         x = NULL, y = "Count") +
    theme_minimal(base_size = 12) +
    theme(
      panel.grid.major.y = element_blank(),
      plot.background  = element_rect(fill = bg_hex, color = NA),
      panel.background = element_rect(fill = bg_hex, color = NA),
      plot.title = element_text(color = base_hex, hjust = 0.5),
      axis.text  = element_text(color = base_hex)
    )
}
#> [1] "#AF76AF" "#009F08" "#0096B3"
#> attr(,"info")
#> attr(,"info")$contrast_bg_eff
#> [1] 4.5
#>
#> attr(,"info")$contrast_base_eff
#> [1] 3
#>
#> attr(,"info")$min_deltaE_eff
#> [1] 35
#>
#> attr(,"info")$min_hue_sep_eff
#> [1] 35
#>
#> attr(,"info")$n_candidates_in_gamut
#> [1] 82507
#>
#> attr(,"info")$n_after_contrast
#> [1] 590
#>
#> attr(,"info")$n_selected
#> [1] 3
#>
#> attr(,"info")$hue_mode
#> [1] "global"
#>
#> attr(,"info")$repel_band
#> [1] 50
#>
#> attr(,"info")$auto_bias
#> [1] TRUE
#>
#> attr(,"info")$contrast_method
#> [1] "WCAG"
#>
