ggtwotone

ggtwotone is an R package that extends ggplot2 with dual-stroke and contrast-aware geoms. It helps you create clear, high-contrast annotations and lines that remain visible across complex or variable backgrounds.

What’s Inside

  • geom_segment_dual(): Dual-stroke line segments with vertical offset

  • geom_lm_dual(): Dual-tone regression line with contrast-aware strokes

  • geom_curve_dual(): Dual-stroke curved line annotations

  • geom_curve_dual_function(): Plot mathematical or statistical functions as smooth dual-stroke curves

  • geom_text_contrast(): Automatically switches between light/dark text color based on background

  • adjust_contrast_pair(): Helper function to find contrast-boosted color pairs using WCAG/APCA

Installation

You can install the development version of ggtwotone from GitHub with:

# install.packages("pak")
pak::pak("bwanniarachchige2/ggtwotone")

Example

These are some examples which show you how to use the package:

library(ggtwotone) # automatically loads ggplot2 if it is not active
#> Loading required package: ggplot2
library(magick)
#> Linking to ImageMagick 6.9.13.29
#> Enabled features: cairo, fontconfig, freetype, heic, lcms, pango, raw, rsvg, webp
#> Disabled features: fftw, ghostscript, x11
library(grid)

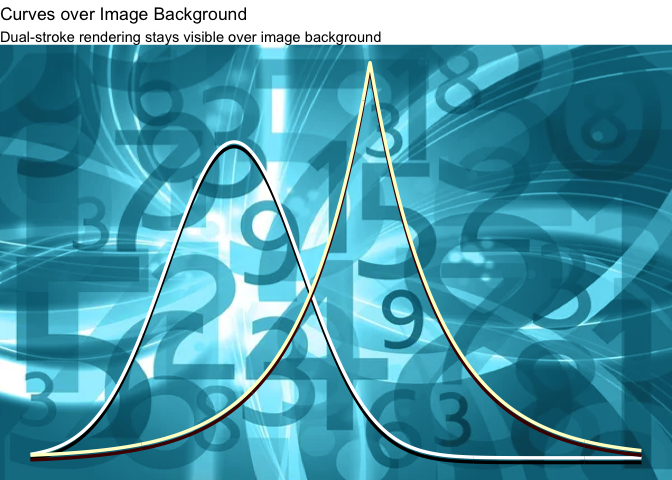

img <- magick::image_read("man/figures/background_image.jpg")

# Convert image to a rasterGrob
bg_grob <- grid::rasterGrob(img, width = unit(1,"npc"), height = unit(1,"npc"))

# Plot
ggplot() +
  annotation_custom(bg_grob, xmin = -Inf, xmax = Inf, ymin = -Inf, ymax = Inf) +

  geom_curve_dual_function(
    fun = dnorm,
    xlim = c(-3, 6),
    base_color = "blue",
    linewidth = 2,
    smooth = TRUE
  ) +

  geom_curve_dual_function(
    fun = function(x) 0.5 * exp(-abs(x - 2)),
    xlim = c(-3, 6),
    colour1 = "#FFFFCC",
    colour2 = "#4B0000",
    linewidth = 2,
    smooth = TRUE
  ) +

  coord_cartesian(ylim = c(0, 0.5)) +
  theme_void() +
  theme(
    plot.background = element_rect(fill = "transparent", color = NA),
    panel.background = element_rect(fill = "transparent", color = NA)
  ) +
  labs(
    title = "Curves over Image Background",
    subtitle = "Dual-stroke rendering stays visible over image background"
  )

library(dplyr)
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#>     filter, lag
#> The following objects are masked from 'package:base':
#>
#>     intersect, setdiff, setequal, union

# Zone-colored background
set.seed(42)
tile_df <- expand.grid(x = -7:7, y = -7:7)
zones <- c("Desert", "Forest", "Sea", "Urban")
zone_colors <- c(
  "Desert" = "#EDC9AF",
  "Forest" = "#14532d",
  "Sea"    = "#0F3556",
  "Urban"  = "#eeeeee"
)
tile_df$zone <- sample(
  zones,
  size = nrow(tile_df),
  replace = TRUE,
  prob = c(0.2, 0.2, 0.4, 0.2)
)

# Realistic wind vectors
set.seed(42)
n <- 25
wind_df <- data.frame(
  x = sample(-4:4, n, replace = TRUE),
  y = sample(-4:4, n, replace = TRUE),
  angle = runif(n, 180, 270),  # Southwest quadrant
  speed = runif(n, 1.5, 4)     # Speed in m/s
) |>
  mutate(
    xend = x + speed * cos(angle * pi / 180),
    yend = y + speed * sin(angle * pi / 180)
  )

# Plot
ggplot() +
  geom_tile(data = tile_df, aes(x = x, y = y, fill = zone)) +
  scale_fill_manual(values = zone_colors, name = "Zone Type") +

  geom_segment_dual(
    data = wind_df,
    aes(x = x, y = y, xend = xend, yend = yend),
#    colour1 = "#FFFFFF", colour2 = "#111111",
    linewidth = 1.2,
    arrow = arrow(length = unit(0.15, "inches"), type = "open"),
    alpha = 0.9
  ) +
  coord_fixed(xlim = range(c(wind_df$x, wind_df$xend)),
            ylim = range(c(wind_df$y, wind_df$yend))) +
  theme_minimal(base_size = 14) +
  theme(
    panel.background = element_rect(fill = "white", color = NA)
  ) +
  labs(
    title = "Wind Directions Across Zones",
    subtitle = "Arrow direction and length represent wind flow and speed (m/s);\ndual-stroke improves visibility",
    x = "Longitude",
    y = "Latitude"
  )
#> Warning in geom_segment_dual(data = wind_df, aes(x = x, y = y, xend = xend, :
#> Ignoring empty aesthetics: `colour1` and `colour2`.

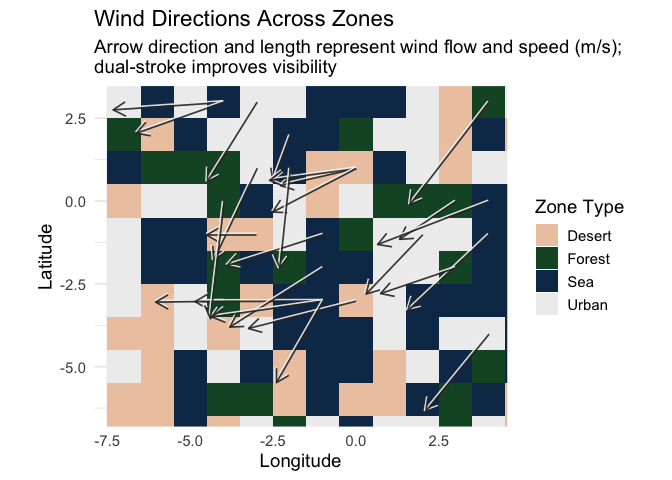

This example visualizes wind directions and speeds over a zone-classified terrain map using geom_segment_dual().
Arrow length is scaled by wind speed (in m/s), and dual-stroke styling ensures clear visibility across contrasting terrain types such as desert, forest, sea, and urban zones.

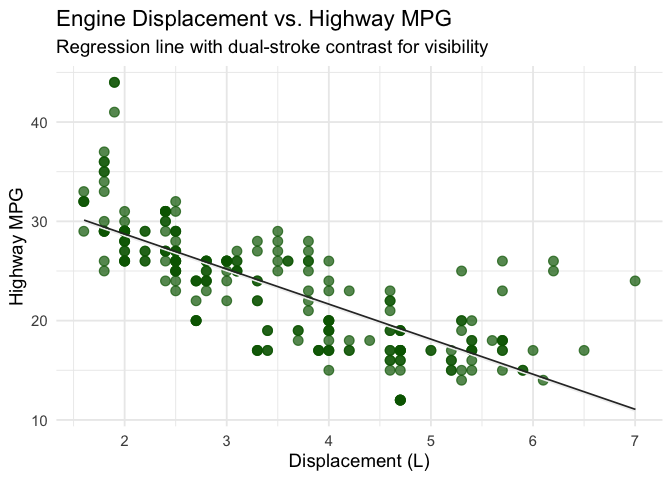

library(ggplot2)
library(ggtwotone)

df <- mpg

# plot
ggplot(df, aes(x = displ, y = hwy)) +
  geom_point(color = "darkgreen", size = 3, alpha = 0.7) +

  geom_lm_dual(
    data = df,
    mapping = aes(x = displ, y = hwy),
    method = "lm",
    formula = hwy ~ displ,
    base_color = "#555555",
    contrast = 4.5,
    method_contrast = "auto",
    linewidth = 1.2
  ) +

  theme_minimal(base_size = 14) +
  labs(
    title = "Engine Displacement vs. Highway MPG",
    subtitle = "Regression line with dual-stroke contrast for visibility",
    x = "Displacement (L)",
    y = "Highway MPG"
  )

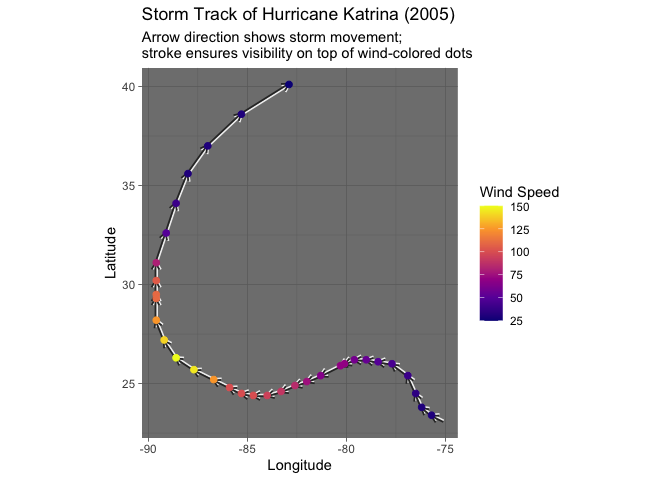

library(dplyr)

# Sample from real storm data
data("storms", package = "dplyr")

storm_subset <- storms %>%
  filter(name == "Katrina", year == 2005) %>%
  mutate(
    x = lag(long), y = lag(lat),
    xend = long, yend = lat
  ) %>%
  filter(!is.na(x), !is.na(y))  # remove first row with NA lag

# Plot
ggplot(storm_subset) +
  geom_segment_dual(
    aes(x = x, y = y, xend = xend, yend = yend, group = 1),
    color1 = "white", color2 = "black",
    linewidth = 1.2,
    arrow = arrow(length = unit(0.08, "inches"), type = "open")
  ) +
  geom_point(aes(x = xend, y = yend, color = wind), size = 2) +
  scale_color_viridis_c(option = "C", name = "Wind Speed") +
  coord_fixed() +
  labs(
    title = "Storm Track of Hurricane Katrina (2005)",
    subtitle = "Arrow direction shows storm movement; \nstroke ensures visibility on top of wind-colored dots",
    x = "Longitude", y = "Latitude"
  ) +
  theme_dark()
#> Warning: Duplicated aesthetics after name standardisation: colour1 and colour2
#> Warning in geom_segment_dual(aes(x = x, y = y, xend = xend, yend = yend, :
#> Ignoring empty aesthetics: `colour1` and `colour2`.

library(ggplot2)
library(magick)

img_path   <- "micro_image.jpg"
um_per_px  <- 0.05                  # <-- calibration: micrometers per pixel
bar_um     <- 10                    # scale bar length in micrometers

# Load image as a background grob
img <- magick::image_read(img_path)
w   <- magick::image_info(img)$width
h   <- magick::image_info(img)$height
bg  <- grid::rasterGrob(img, width = unit(1, "npc"), height = unit(1, "npc"))


meas <- data.frame(
  x = 0.3218, y = 0.4507, xend = 0.7974, yend = 0.6371   # <-- adjust to your line
)

# Compute physical length for the label
dx_px  <- abs(meas$xend - meas$x) * w
dy_px  <- abs(meas$yend - meas$y) * h
len_um <- sqrt(dx_px^2 + dy_px^2) * um_per_px
lab    <- sprintf("%.1f \u00B5m", len_um)

# Midpoint for the label
xm <- (meas$x + meas$xend)/2
ym <- (meas$y + meas$yend)/2
lab_df <- data.frame(x = xm, y = ym + 0.05, label = lab)

#Plot
ggplot() +
  # background SEM image
  annotation_custom(bg, xmin = 0, xmax = 1, ymin = 0, ymax = 1) +
  # measurement line with dual stroke
  geom_segment_dual(
    data = meas,
    aes(x = x, y = y, xend = xend, yend = yend),
    colour1 = "#0D0D0D",
    colour2 = "#FFFFFF",
    linewidth = 1.2,
    lineend = "round",
    arrow = grid::arrow(ends = "both", length = unit(0.18, "in"), type = "open")
  ) +
  # measurement label (contrast-aware)
  geom_text_contrast(
    data = lab_df,
    aes(x = x, y = y, label = label),
     background = "#444444",
    size = 4.2
  ) +
  coord_fixed(xlim = c(0, 1), ylim = c(0, 1), expand = FALSE) +
  theme_void()

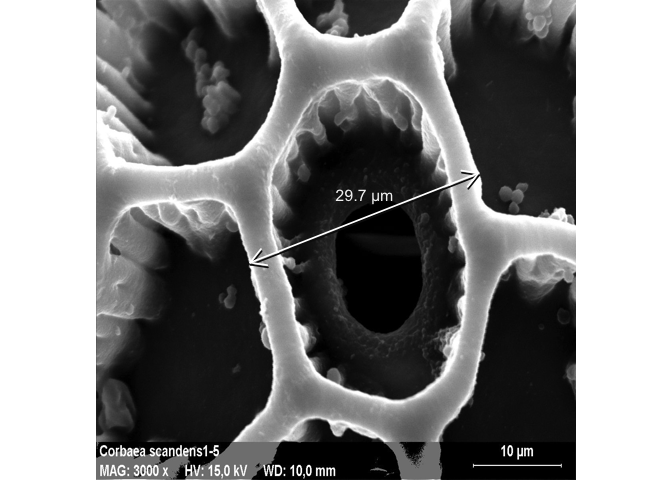

SEM micrograph with dual-stroke measurement overlay

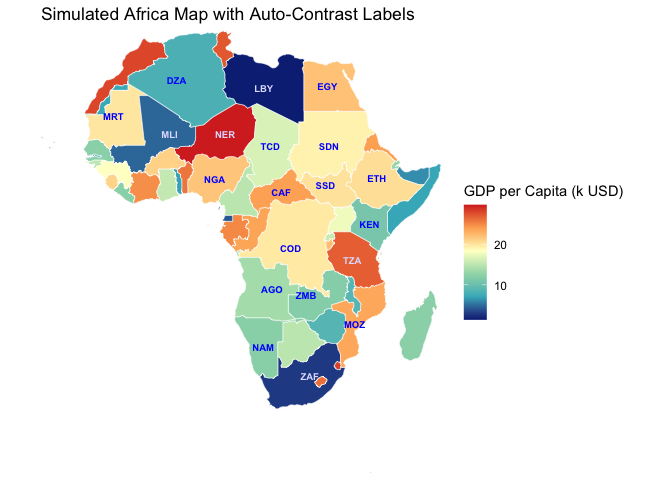

# Packages
library(ggplot2)
library(dplyr)
library(sf)
library(scales)
library(rnaturalearth)
library(rnaturalearthdata)

# 1) Africa polygons
africa <- rnaturalearth::ne_countries(
  continent = "Africa", scale = "medium", returnclass = "sf"
)

# 2) Simple variable (simulate GDP per capita, k USD)
set.seed(1)
africa$gdp_pc <- runif(nrow(africa), min = 1, max = 30)

# 3) Palette + per-country HEX for contrast
pal <- c("#0C2C84", "#41B6C4", "#A1DAB4", "#FFFFCC", "#FDAE61", "#D73027")
col_fun <- scales::col_numeric(palette = pal,
                               domain = range(africa$gdp_pc, na.rm = TRUE))
africa$fill_hex <- col_fun(africa$gdp_pc)

# 4) Label positions
labels <- africa %>%
  mutate(
    point = sf::st_point_on_surface(geometry),
    lon   = sf::st_coordinates(point)[, 1],
    lat   = sf::st_coordinates(point)[, 2],
    area  = as.numeric(sf::st_area(geometry)),
    code  = iso_a3
  ) %>%
  dplyr::slice_max(area, n = 20)

# 5) Plot
ggplot(africa) +
  geom_sf(aes(fill = gdp_pc), color = "white", linewidth = 0.2) +
  geom_text_contrast(
    data = labels,
    aes(x = lon, y = lat, label = code),
    inherit.aes = FALSE,
    background  = labels$fill_hex,
    base_colour = "blue",
    method = "auto", contrast = 4.5,
    size = 2.5, fontface = "bold"
  ) +
  scale_fill_gradientn(colours = pal, name = "GDP per Capita (k USD)") +
  coord_sf(expand = FALSE) +
  labs(title = "Simulated Africa Map with Auto-Contrast Labels", x = NULL, y = NULL) +
  theme_minimal(base_size = 11) +
  theme(panel.grid = element_blank(), axis.text = element_blank())

Drawing two lines side by side

The basic idea of drawing line segments with the segment_dual geom is to replace any line segment from A to B by two line segments drawn side by sidein different color hues chosen such that at least one of the coior hues has a sufficiently large (color) contrast to any background colors.

dframe <- data.frame(x =c(1,3,5), xmax = c(2, 4, 6), y = c(3,2,1), ymax=c(3,4,5), group = 4:6)
dframe |>
  ggplot(aes(x = x, xend=xmax, y = y, yend=ymax)) +
  geom_point(size = 5) +
  geom_point(aes(x = xmax, y = ymax), size = 5) +
  geom_segment(aes(group = group), linewidth = 20, alpha = 0.5) +
  geom_segment_dual(aes(group = group, color1 = factor(group)), linewidth = 20, alpha = 0.5) +
  theme_bw() + theme(aspect.ratio = 1/3) #+
#> Warning in geom_segment_dual(aes(group = group, color1 = factor(group)), :
#> Ignoring empty aesthetics: `colour1` and `colour2`.

#  geom_point(size = 5) +
#  geom_point(aes(x = xmax, y = ymax), size = 5)

Motivation

In real-world plots, especially on mixed backgrounds (grayscale tiles, images, or map layers), default ggplot2 annotations can disappear. ggtwotone solves this with:

  • Dual-stroke visibility: top and bottom layers ensure readability

  • Contrast checking: uses APCA/WCAG to optimize color pairing

  • Fallback safety: gracefully assigns black/white when needed

You can explore all functions in the Reference Manual, or see them in the R help tab after loading the package.
